Customized Foam Vacuum Gripper For Handling Porous Breathable Workpieces

Brand Name : AMILA

Model Number : Composite Suction Cups MD-Foam

Place of Origin : CHINA

MOQ : Negotiatable

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : Negotiatable

Delivery Time : Depending on the order quantity

Packaging Details : Carton package/Wooden cases

Adsorption size : 90×65mm and 200×120mm

Material : Foam

Highlight 1 : Good wear-resistance

Highlight 2 : Size can be customized

Contact Now

Special Grippers Composite Type MD-Foam Customized For Specific Size

1. Introduction and applicaton:

  • Handling porous, breathable workpieces;
  • Size can be customized;

2. Structure:

Customized Foam Vacuum Gripper For Handling Porous Breathable Workpieces

  • (1) is Silencer;
  • (2) Axial mounting (A) or lateral mounting(S);
  • (3) is compressed air intake;

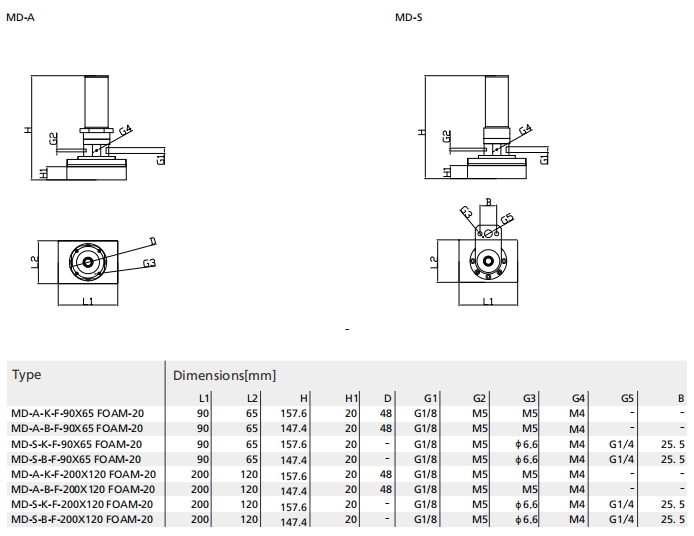

3. Deaign data:

Customized Foam Vacuum Gripper For Handling Porous Breathable Workpieces

***Note: A represents the axial installation of the upper flange; S represents the lateral installation of the upper flange; K represents the adjustable vacuum generator; B represents the non-adjustable vacuum generator; F represents the lower flange;

4. Technology data:

Type Dimensions[mm]
Suction capacity Air consumption Operating pressure Operating temperature
[l/min] [l/min] [bar] [℃]
MD-A-K-F 0…750 0…250 5 5…75
MD-A-K-M 0…750 0…250 5 5…75
MD-S-K-F 0…750 0…250 5 5…75
MD-S-K-M 0…750 0…250 5 5…75

Type Dimensions[mm]
Suction capacity Air consumption Operating pressure Operating temperature
[l/min] [l/min] [bar] [℃]
MD-A-B-F 270…650 60…200 1.0…5.0 5…75
MD-A-B-M 270…650 60…200 1.0…5.0 5…75
MD-S-B-F 270…650 60…200 1.0…5.0 5…75
MD-S-B-M 270…650 60…200 1.0…5.0 5…75

Composite Suction Cups MD-FOAM.pdf
