Easy Cleaning Special Grippers MD-CUP Excellent Absorption And Lateral Stability

Name: Easy Cleaning Special Grippers MDCUP Excellent Absorption And Lateral Stability
Brand: AMILA
Price: 1 USD

Brand Name : AMILA

Model Number : Composite Suction Cups MD-CUP

Place of Origin : CHINA

MOQ : Negotiatable

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : Negotiatable

Delivery Time : Depending on the order quantity

Packaging Details : Carton package/Wooden cases

Adsorption size : 20 30 40 50mm

Material : Si、Si-AS

Highlight 1 : High strength

Highlight 2 : good wear resistance

Type : MD-CUP

Keyword : Special Grippers

Contact Now

Special Gripper Composite Type MD-CUP With High Strength And Wear-resistance

1. Introduction and applicaton:

Handling composite textiles as well as non-rigid and flexible workpieces
Electronic components, anti-static;

2. Benefits

Reliable gripping of even porous, highly textured workpieces
High lateral stability, even at high accelerations; excellent sealing and shock absorption on textured surfaces
Prevents workpiece from being sucked in and damaged
Easy cleaning

3. Structure:

Easy Cleaning Special Grippers MD-CUP Excellent Absorption And Lateral Stability

(1) is Silencer;
(2) Axial mounting (A) or lateral mounting(S);
(3) is compressed air intake;

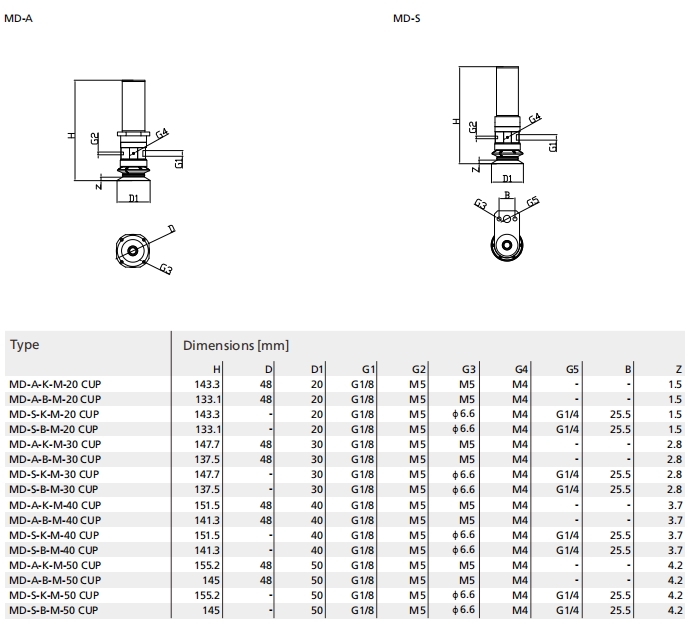

4. Design data:

Easy Cleaning Special Grippers MD-CUP Excellent Absorption And Lateral Stability

***Note: A represents the axial installation of the upper flange; S represents the lateral installation of the upper flange; K represents the adjustable vacuum generator; B represents the non-adjustable vacuum generator; F represents the lower flange;

5. Technology data:

Type	Dimensions[mm]
	Suction capacity	Air consumption	Operating pressure	Operating temperature
	[l/min]	[l/min]	[bar]	[℃]
MD-A-K-F	0…750	0…250	5	5…75
MD-A-K-M	0…750	0…250	5	5…75
MD-S-K-F	0…750	0…250	5	5…75
MD-S-K-M	0…750	0…250	5	5…75

Type	Dimensions[mm]
	Suction capacity	Air consumption	Operating pressure	Operating temperature
	[l/min]	[l/min]	[bar]	[℃]
MD-A-B-F	270…650	60…200	1.0…5.0	5…75
MD-A-B-M	270…650	60…200	1.0…5.0	5…75
MD-S-B-F	270…650	60…200	1.0…5.0	5…75
MD-S-B-M	270…650	60…200	1.0…5.0	5…75

Composite Suction Cups MD-CUP.pdf
