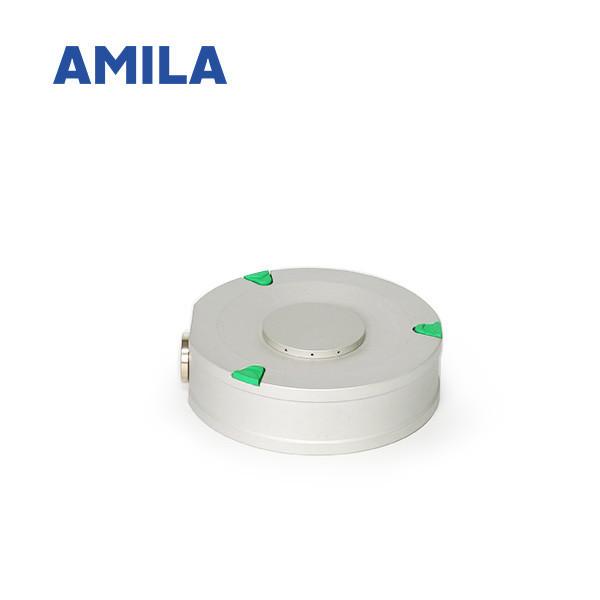

Special Size Contactless Vacuum Cup MBN With Anodic Aluminum Plating Case

Brand Name : AMILA

Model Number : Contactless Suction cup MBN

Place of Origin : CHINA

MOQ : Negotiatable

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : Negotiatable

Delivery Time : Depending on the order quantity

Packaging Details : Carton package/Wooden cases

Diameter : 20 to 120mm

Suction Force : 2.0 to 55.5N

Material : Anodic aluminum plating

Highlight : Rubber buffer on the bottom side

Features : Optimized design for high reliability

Keyword : Contactless Suction Cup

Contact Now

Special Grippers Contactless Suction Cup MBN With Anodic Aluminum Plating

1. Introduction

  • Optimized design for high reliability.
  • Mechanical and electrical interfaces.
  • Light weight and low build height.
  • Integrated safety related functions.

2. Applicaton

  • For handling and separation of extremely thin workpieces without permanent deformation (e.g. film, paper, wood veneer)
  • Handling highly permeable workpieces, (e.g.printed circuit boards without electronic components installed).

3. Structure

Special Size Contactless Vacuum Cup MBN With Anodic Aluminum Plating Case

  • Connection directly via four mounting threads (1) on the top side;
  • Vertical (2) and horizontal compressed air connections;
  • Horizontal-direction compressed air connection hole (closed with plug);
  • The main material is anodized aluminumy with integrated bernoulli nozzle (3);
  • Streaming element (4) in two versions: standard flow SF for airtight workpieces and high flow HF for higher leakage compensation on porous workpieces;
  • Mark-free rubber buffer of special material HT1 on the bottom side of the suction cup (5);
  • Optional available with central suppor;

4. Design data

Special Size Contactless Vacuum Cup MBN With Anodic Aluminum Plating Case

Type Dimensions[mm]
D G1 G2 G3 H H1 LG1 LG2 LG3 X1
MBN 20 SF M5-IG 20 M5-F M3-F M5-F 17 17.4 5 7.5 6 15
MBN 20 HF M5-IG 20 M5-F M3-F M5-F 17 17.4 5 7.5 6 15
MBN 30 SF M5-IG 30 M5-F M4-F M5-F 17 17.4 5 7.5 6 22
MBN 30 HF M5-IG 30 M5-F M4-F M5-F 17 17.4 5 7.5 6 22
MBN 40 SF GI/8-IG 40 G1/8''-F M4-F G1/8''-F 17 17.4 5 7.5 6 32
MBN 40 HF G1/8-IG 40 G1/8''-F M4-F G1/8''-F 17 17.4 5 7.5 6 32
MBN 60 SF G1/8-IG 60 G1/8''-F M4-F G1/8''-F 17 17.4 5 7.5 6 45
MBN 60 HF G1/8-IG 60 G1/8''-F M4-F G1/8''-F 17 17.4 5 7.5 6 45
MBN 100 SF G1/4-IG 100 G1/4''-F M4-F G1/8''-F 17 17.4 5 7.5 6 75
MBN 100 HF G1/4-IG 100 G1/4''-F M4-F G1/8''-F 17 17.4 5 7.5 6 75
MBN 120 SF G1/4-IG 120 G1/4''-F M4-F G1/8''-F 17 17.4 5 7.5 6 105
MBN 120 HF G1/4-IG 120 G1/4''-F M4-F G1/8''-F 17 17.4 5 7.5 6 105


Contactless suction cup MBN.pdf


Product Tags:

contactless suction cup



sponge vacuum pad
